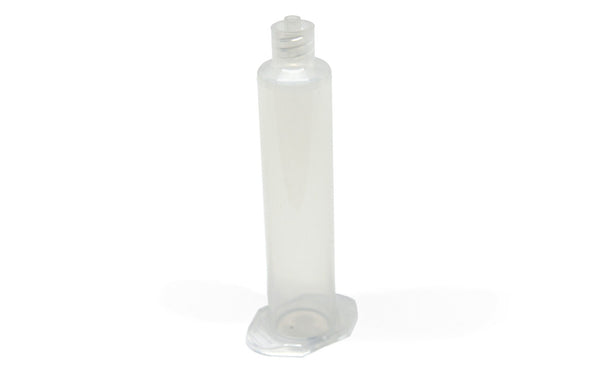

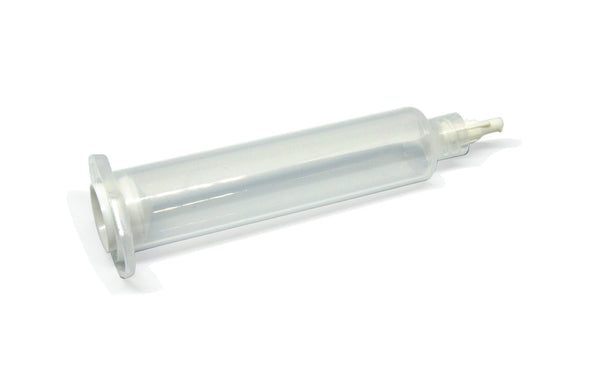

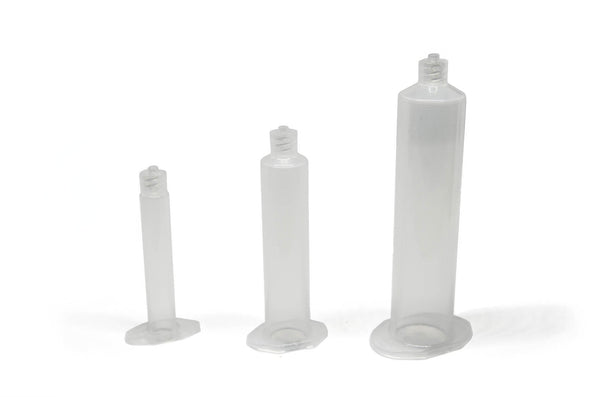

The rounded type barrels are the highest quality dispensing syringe barrels for use with pneumatic dispensers as well as manual applicators. These parts are silicone and chloride-free. The barrels are made from low friction polypropylene to ensure accuracy, repeatability and productivity. Barrels feature a double helix luer lock for secure twist-on dispense tip attachment. Supplied in sealed packs. Natural (Clear) translucent colour.
The rounded end design provides an easier flow path to reduce material back pressure. It adds a benefit for less air entrapment when filling. These products are optimum performance and premium grade.
To complete an assembly, the 10cc WHITE WIPER PISTON ROUNDED TYPE – DISPENTECH are available within our range for all barrel sizes as well as the ORANGE LUER LOCK TIP CAP – DISPENTECH or the ORANGE ROUND LUER LOCK TIP CAP – DISPENTECH possibly the 10cc BLUE END CAP ROUNDED TYPE – DISPENTECH and a CARTRIDGE ADAPTER DIS-211 – DISPENTECH to be used with a dispenser CARTRIDGE DISPENSERS – DISPENTECH
Material High Density Polypropylene (HDPP)
Volume Capacity 10cc (10ml)
OD=0.45" (18.36mm),
ID=0.38" (15.72mm)
L=2.981" (90.93mm)
Tip Hole Outlet Size 0.118" (3.00mm)
Color Natural (Clear)
Maximum operating pressure is 100 psi (6.9bar)
